Twin shaft paddle mixer 4-5t/h improved simple dry mortar production line
Description:
Dry Mortar production line is to meet the small putty powder production users of the investment needs, according to the ordinary horizontal putty powder mixer improved, equipped with secondary lifting equipment, product silo, valve automatic measurement packaging machine,to achieve the automatic measurement of putty powder packaging, saving the cost of packaging and manpower.
This equipment from charging to packaging form a assembly line production process, greatly improve the production efficiency, save labor, reduce production cost. It is a product of low investment, efficiency high, running fast, high return on the small powder mixing equipment, it is the ideal choice for small to medium.
Parameter:
| Specifications for 4-5t/h improved simple dry mortar production line |
| Screw Converyor | CE Mortor | 3kw |
| Twin Shaft Mixer (Equip Fly Cutting System for Fiber)
| Mixer Mortar | 18.5Kw |
| Fly-Cutter Mortor | 4Kw |
| Capacity | 2m3 |
| Finish Product Hopper | Volume | 1m3 |
| Screw Conveyoe | CE Mortor Power | 3Kw |
| Storage Silo | Volume | 2m3 |
| Packing Machine | Model | Impeller valve packing machine |
| Air Compressor | CE Mortor Power | 4Kw |
| Control Cabinet | Quantity | 1Set |

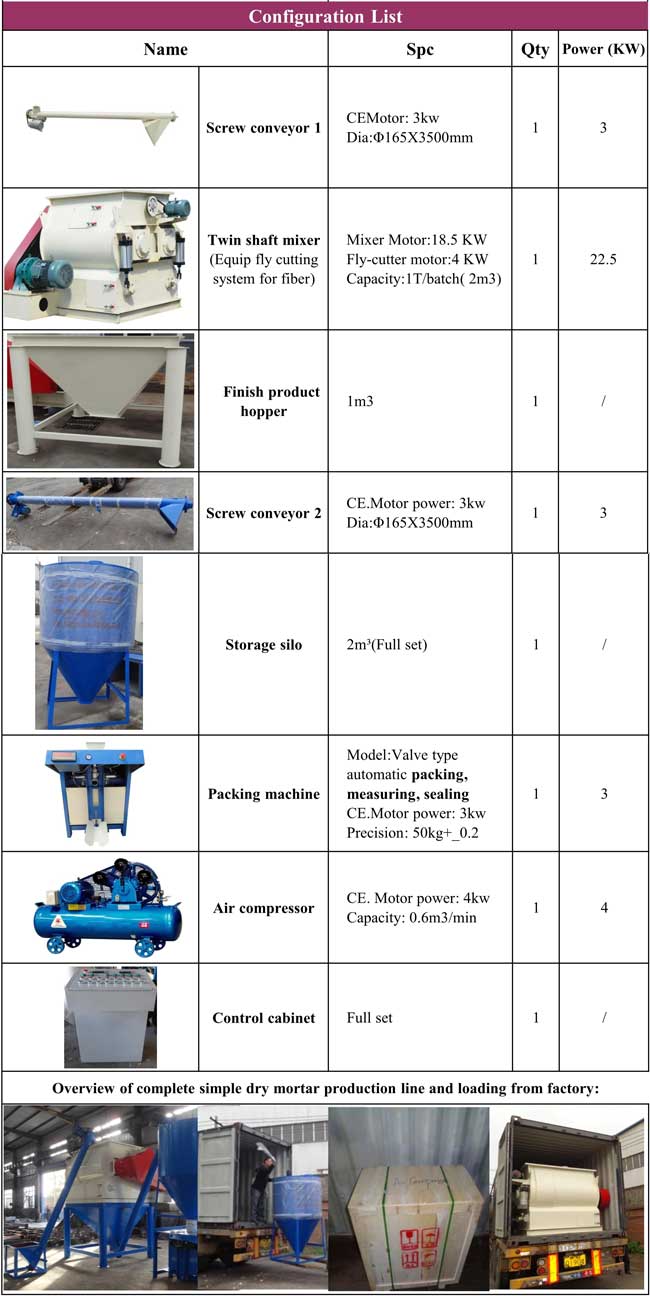

Main composition of dry mortar production line:
Working principle:
1. Manually put the raw materials into the feeding port of the screw conveyor according to the pre-weighed proportion, and the raw materials are conveyed to the dry powder mixer through the screw conveyor for mixing;
2. The discharge port of the dry powder mixer is connected to the screw conveyor, and the finished product of the putty powder is uniformly conveyed by the screw conveyor to the finished product warehouse where the finished product is stored;
3. The finished product warehouse is connected with the valve packing machine (open packaging machine), and the finished product is stored and packed by the packaging machine.
Capability feature:
1.The whole equipment reasonable designed and good performance ,excellet performance ,simple operation,manintenance costs low ,2-3 people can produce ,cover small area,low energy consumption and high output.
2.The equipment completely solved this problem that the proportion of different materials due to segregation and fiber and other issues of secondary reunion.
3.The equipment has small noise in production process ,the power system high and safety ,high efficiency,high mixing uniformity.
Advantages of dry mortar production line:
The dry mortar mixer is highly targeted and designed for the beginners of mortar production, but the application is not wide, mainly for use on the construction site; dry mortar equipment is cheap, because the dust collector is not used, the equipment cost is greatly reduced, and the volume is small dry powder. The left and right sides of the mortar production line; easy to install, no special personnel to install, users can look at it, can be dismantled at each site; production design, about 4-5 tons per hour capacity, can meet most small customers.
Wide application:
Apply to all kinds of heat preservation binding mortar ,plaster cracking mortar ,the clamp seam an agent ,wear-resisting flooring ,the external walls of be bored with child powder ,mortar king ,paint the gypsum powder,fine granular material mixing.

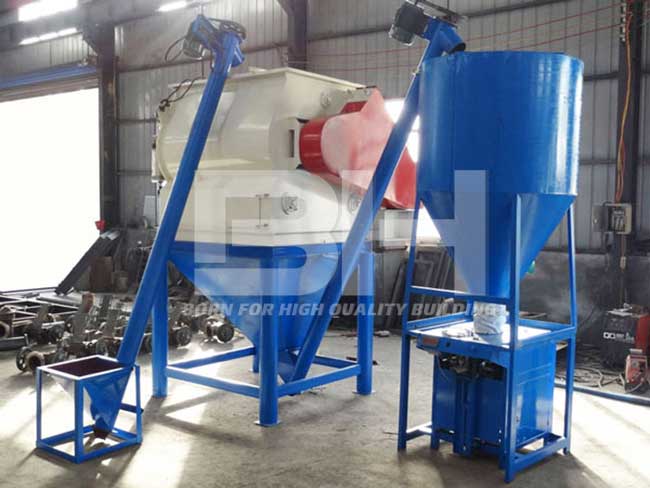

Work site:
